Best used for
Typical jobs for this platform
- maintenance of smaller buildings and courtyards
- service interventions in tight spaces
- fast installations at residential and business properties
Compact
MX170
A good fit for courtyards, smaller sites and quick service interventions.
- Working height
- 17 m
- Side reach
- 7.95 m
- Basket capacity
- 200 kg
- Vehicle weight
- 1,5 t

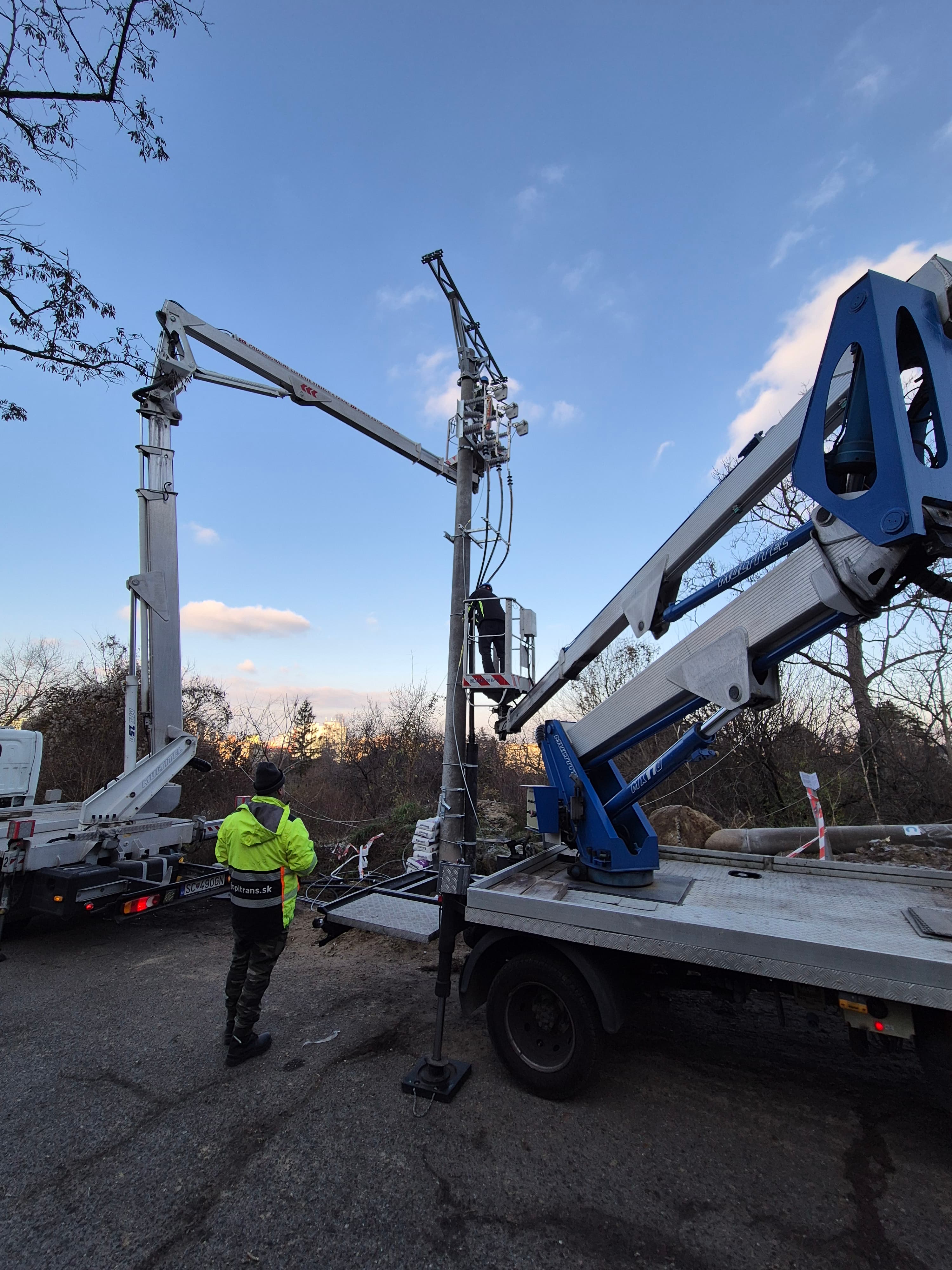

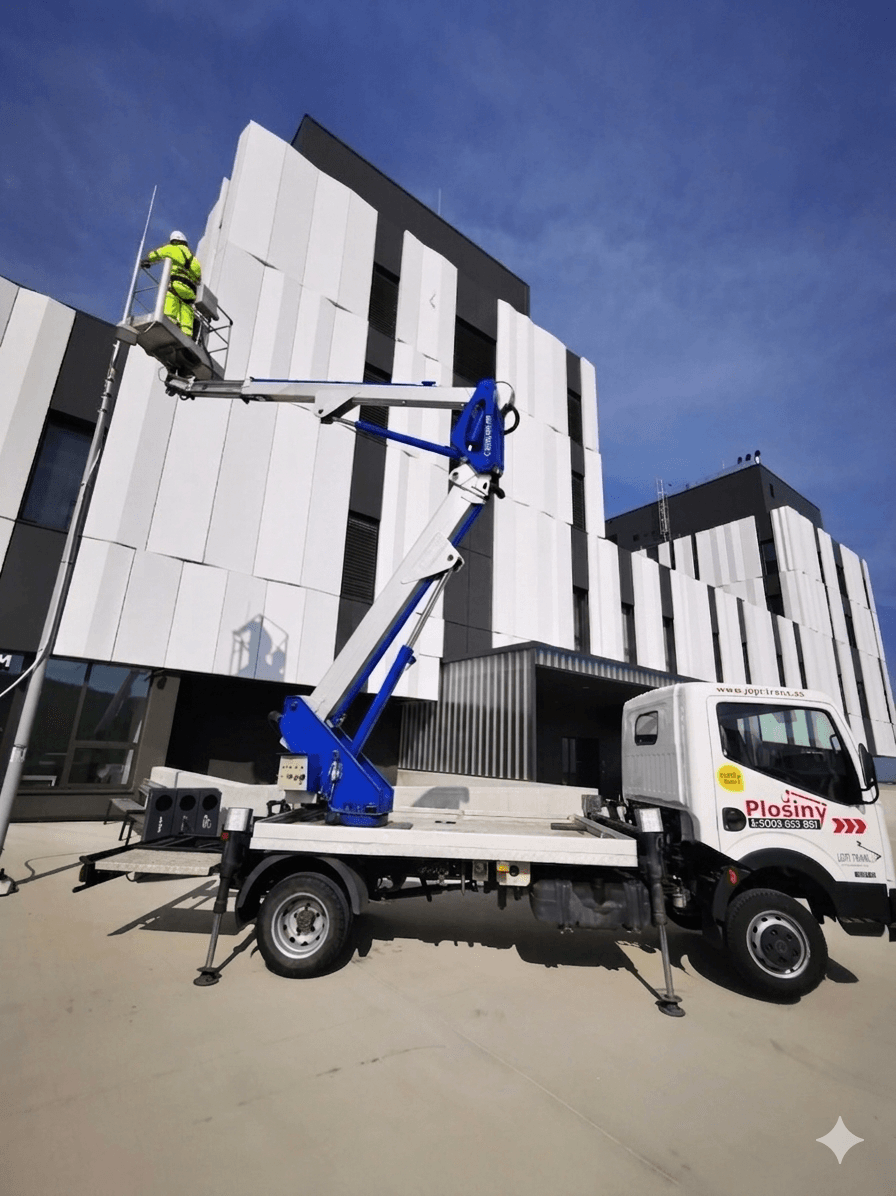

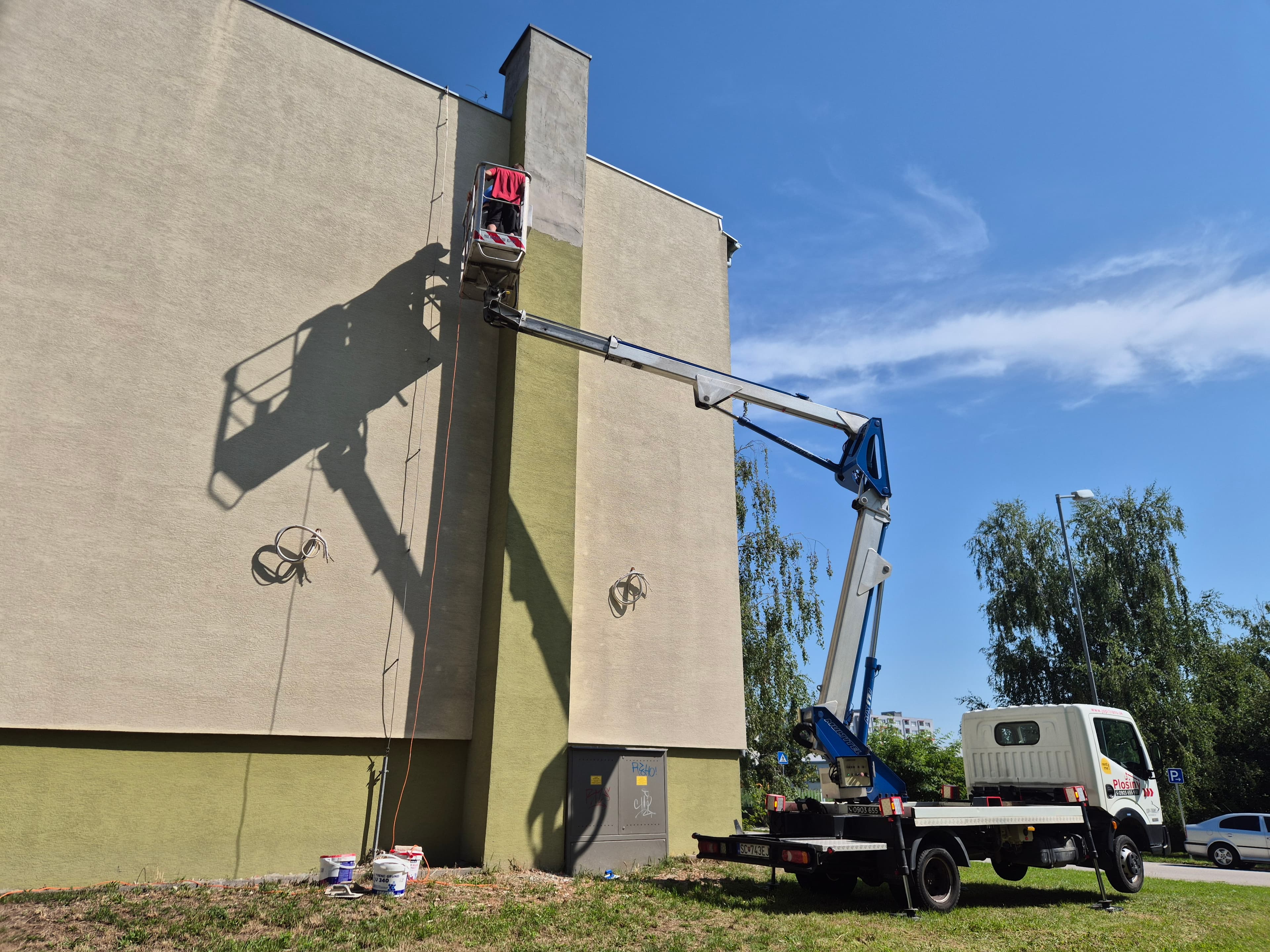

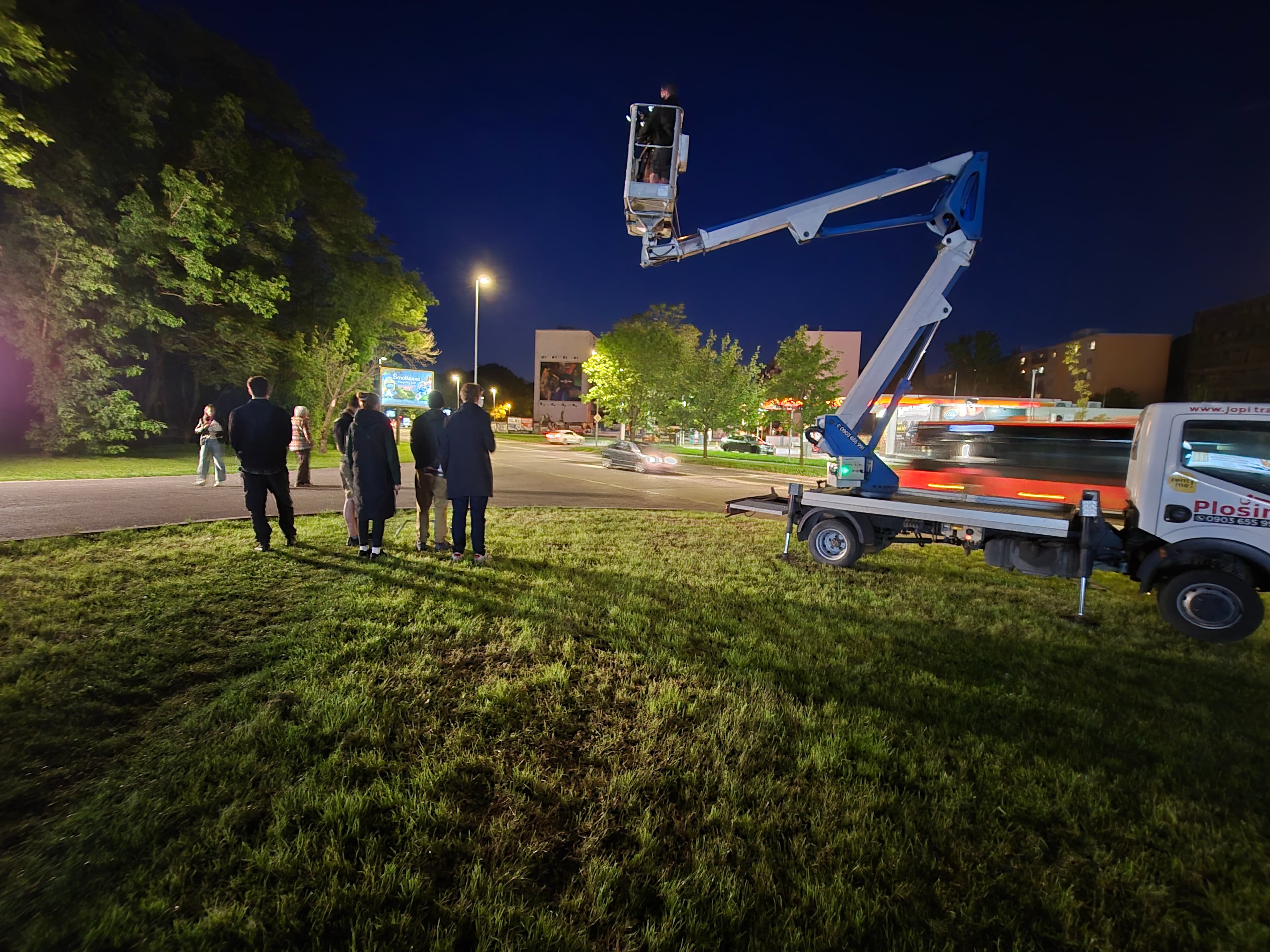

Gallery
Platform gallery
Click on a photo to open a larger view.
Technical parameters
Complete vehicle data
- Chassis
- Nissan Cabstar Multitel MX170
- Drive
- nafta, 4x2
- Max. basket floor height
- 15 m
- Machine height
- 2,4 m
- Machine width
- 2,21 m
- Machine length
- 6,2 m
- Max. working height
- 17 m
- Max. horizontal reach
- 7,95 m
- Column rotation
- 360°
- Basket dimensions
- 1,4 x 0,7 x 1,1 m
- Basket rotation
- 70° vpravo + 70° vľavo
- Basket capacity
- 200 kg
- Total vehicle weight
- 1,5 t

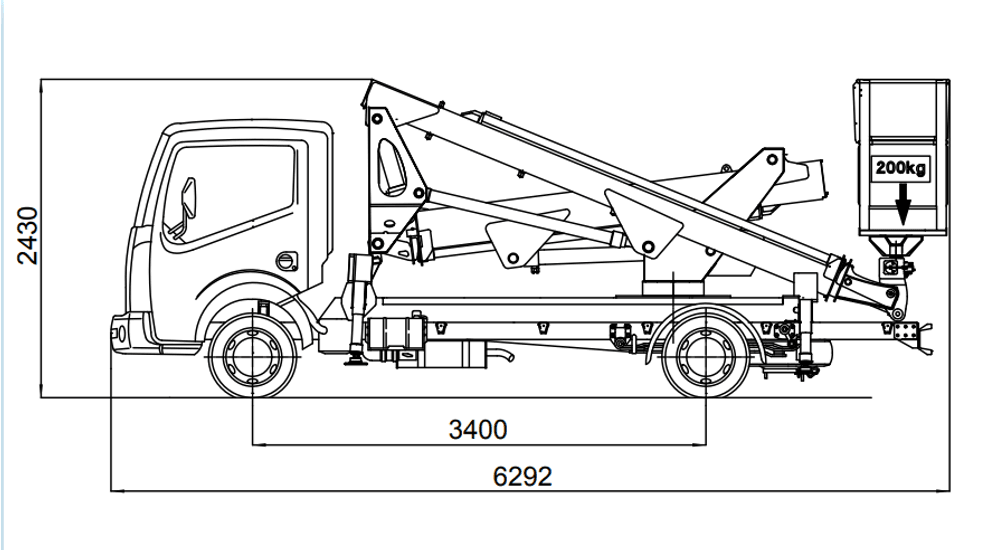

Vehicle dimensions

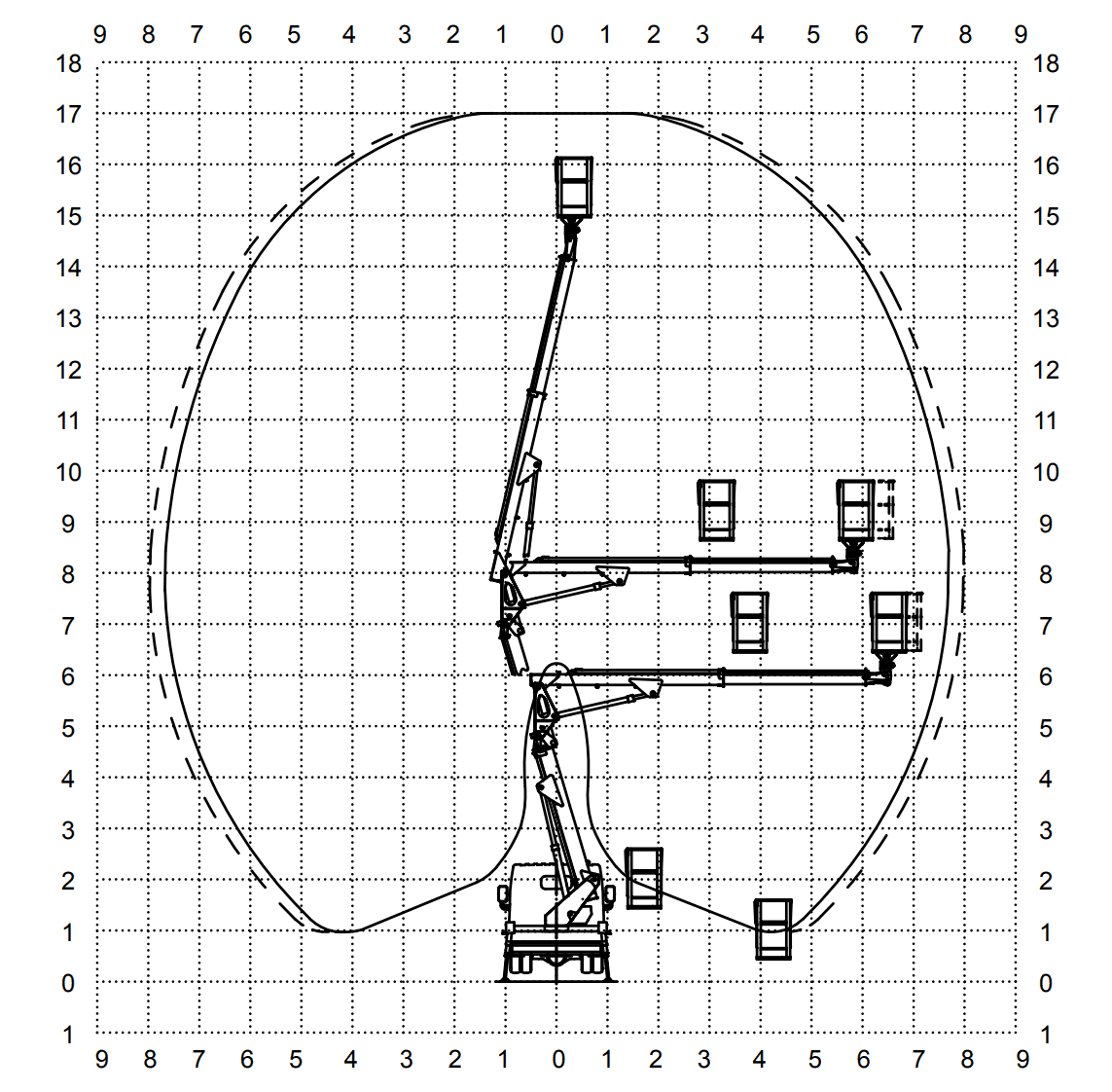

Load diagram
Reach and load by position
Next step
Need a quote for this platform?
Send us the location, type of work and approximate working height. If you already know you need the MX170.
MX170↕ 17 m↔ 7.95 m
