Best used for
Typical jobs for this platform
- installations on halls and facades
- advertisement and billboard service
- general work at height with bigger side reach
Lightweight
MX250
Well suited to facades, halls and advertising surfaces, typically for one operator in the basket.
- Working height
- 25.3 m
- Side reach
- 12.2 m
- Basket capacity
- 200 kg
- Vehicle weight
- 3,5 t

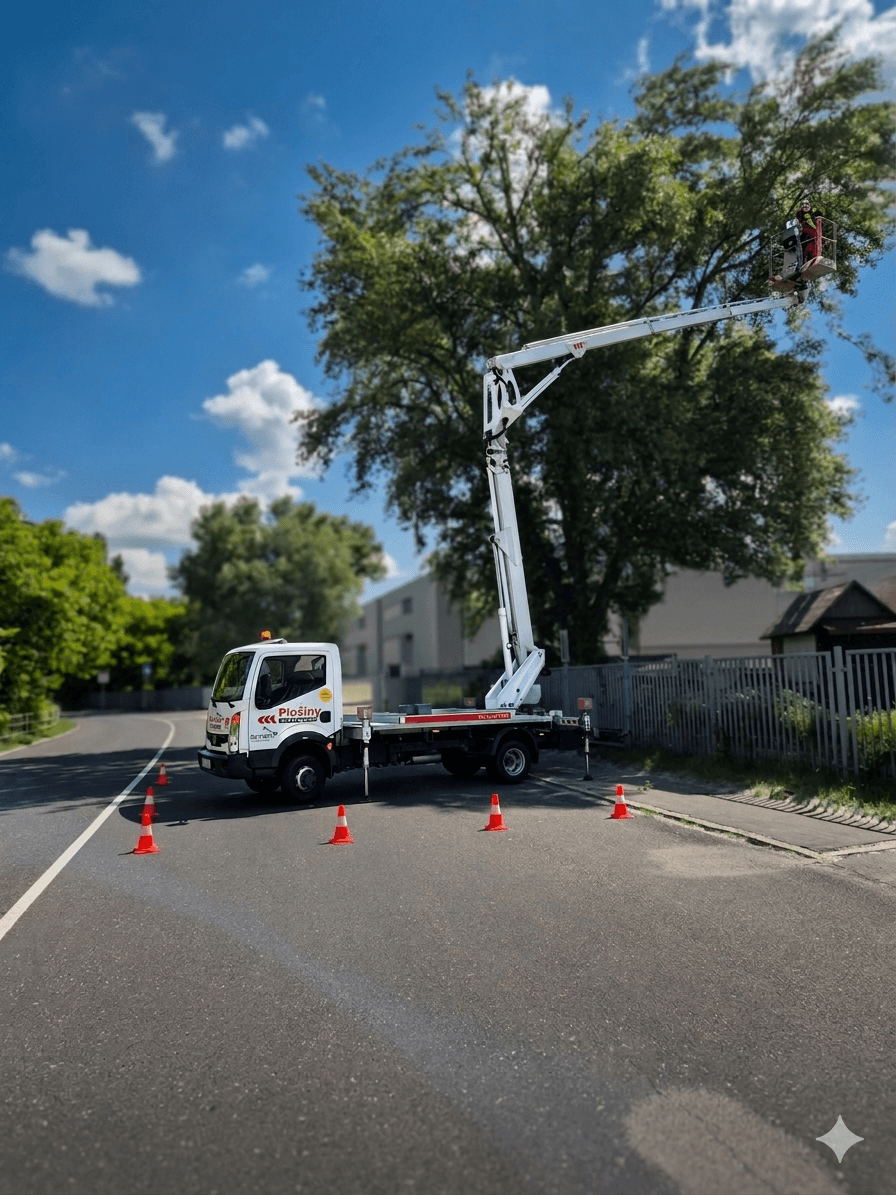

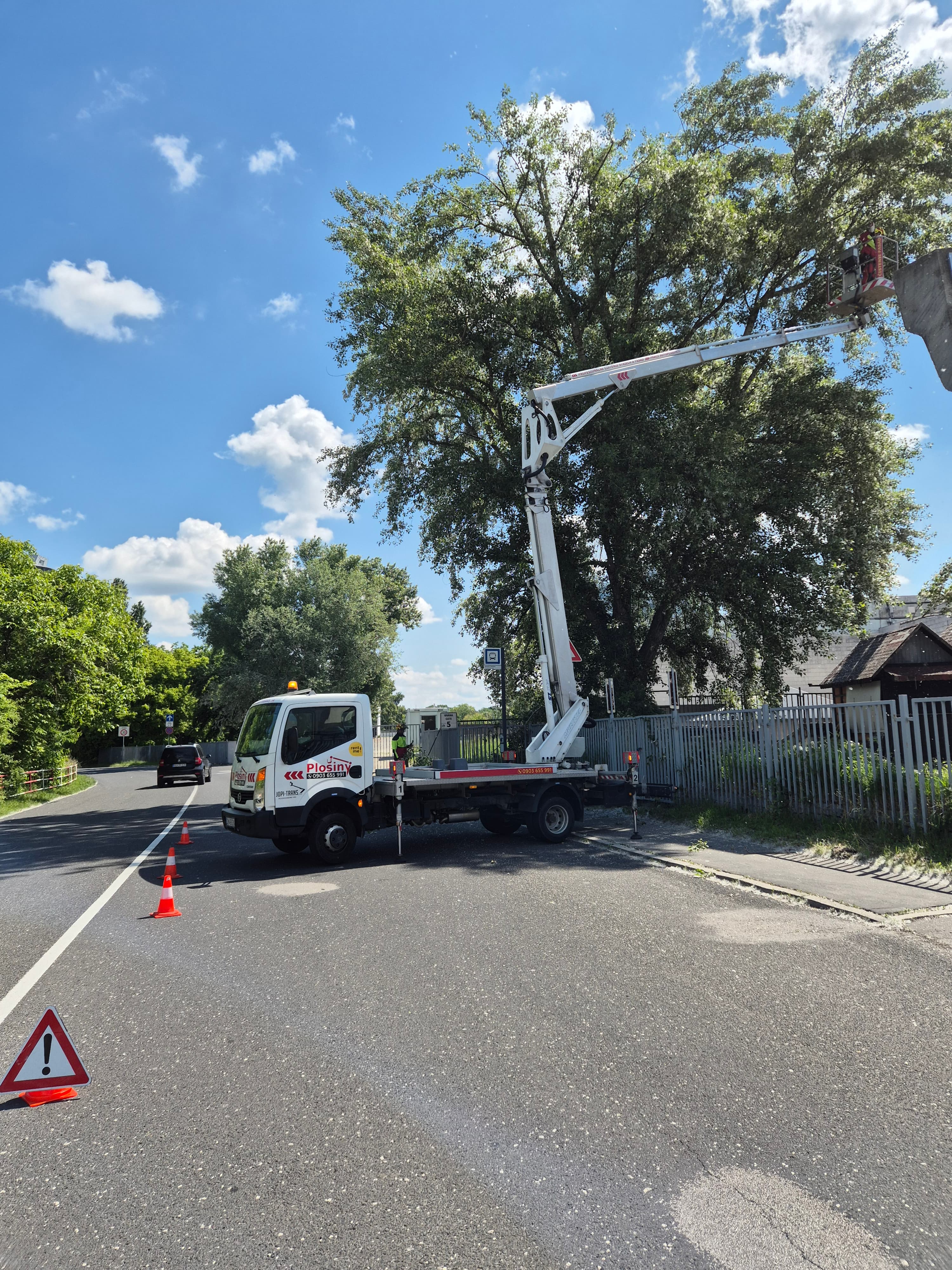

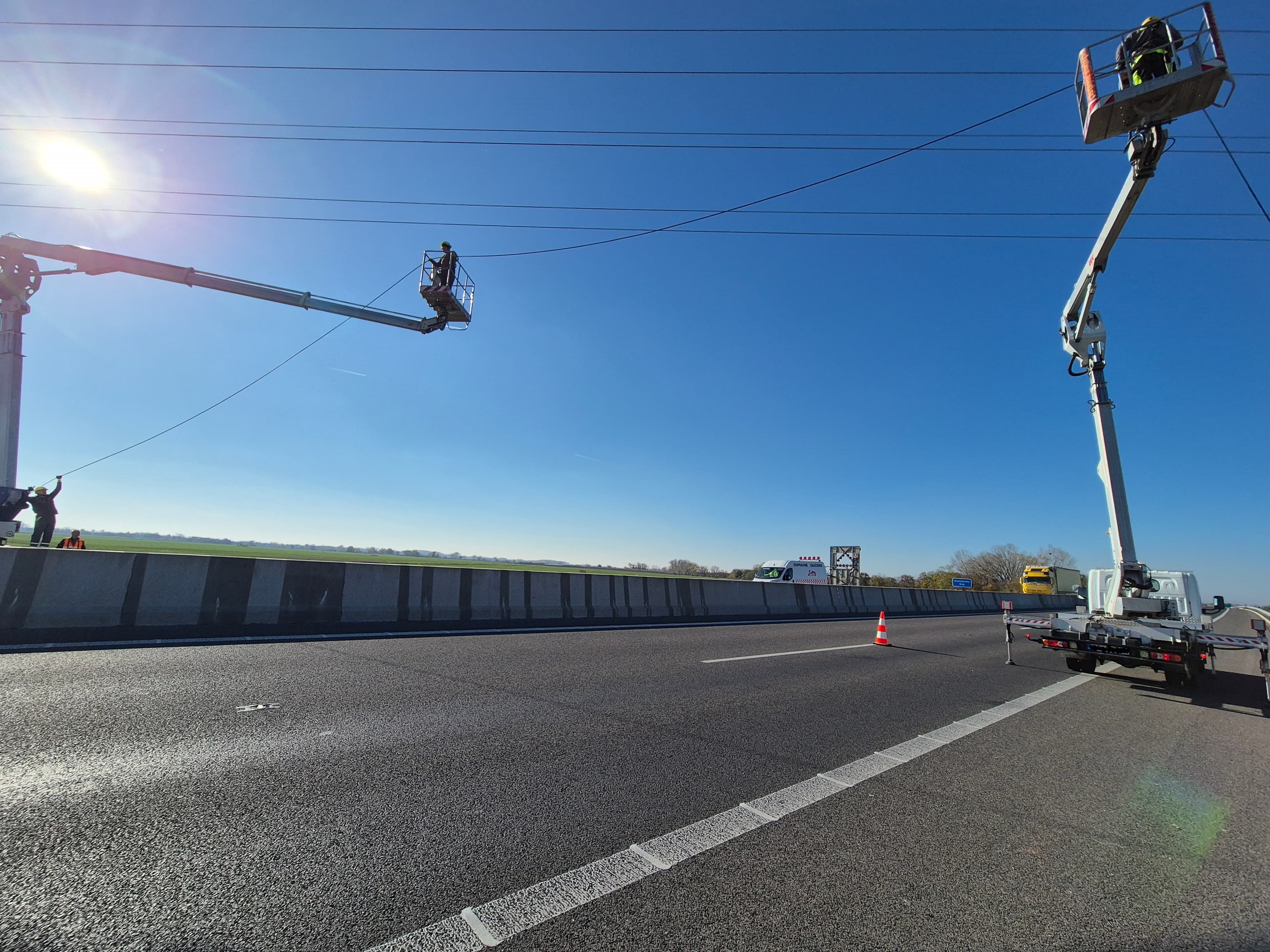

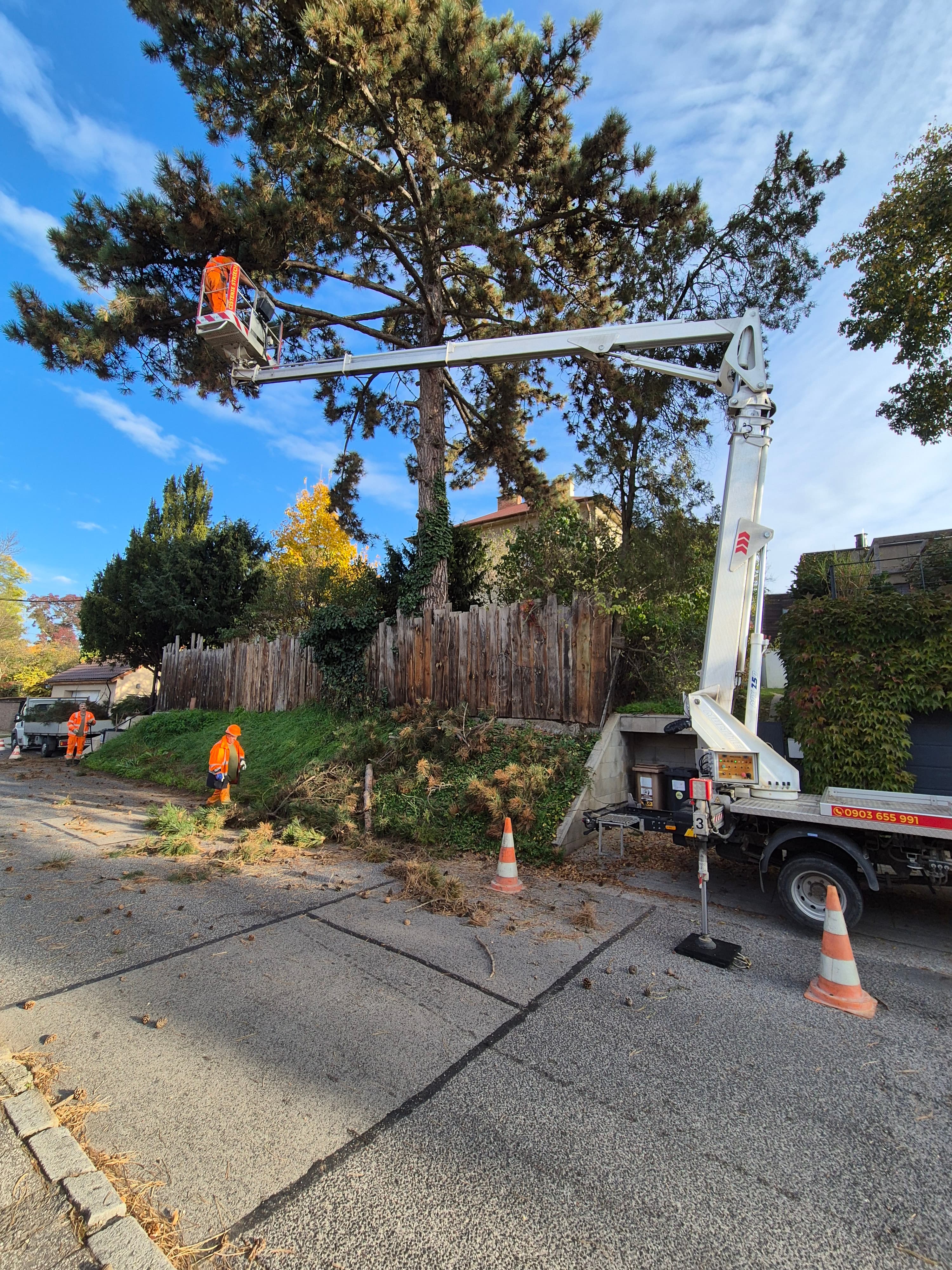

Gallery
Platform gallery
Click on a photo to open a larger view.
Technical parameters
Complete vehicle data
- Chassis
- Nissan Cabstar Multitel MX250
- Drive
- nafta, 4x2
- Max. basket floor height
- 23,3 m
- Machine height
- 2,5 m
- Machine width
- 2,21 m
- Machine length
- 6,82 m
- Max. working height
- 25,3 m
- Horizontal reach
- 12,2 m (80 kg), 9,2 m (200 kg)
- Column rotation
- 400°
- Basket dimensions
- 1,4 x 0,7 x 1,1 m
- Basket rotation
- 90° vpravo + 90° vľavo
- Basket capacity
- 200 kg
- Total vehicle weight
- 3,5 t

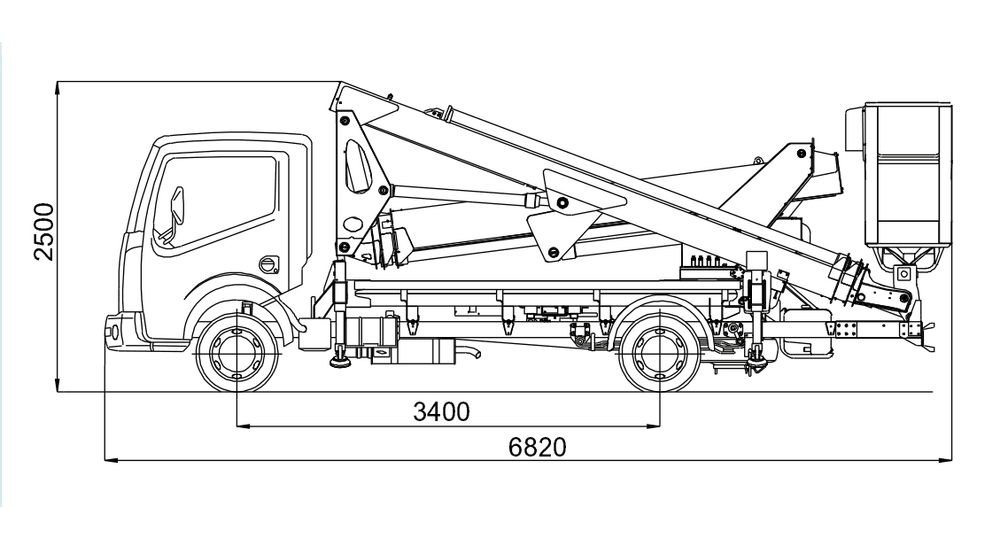

Vehicle dimensions

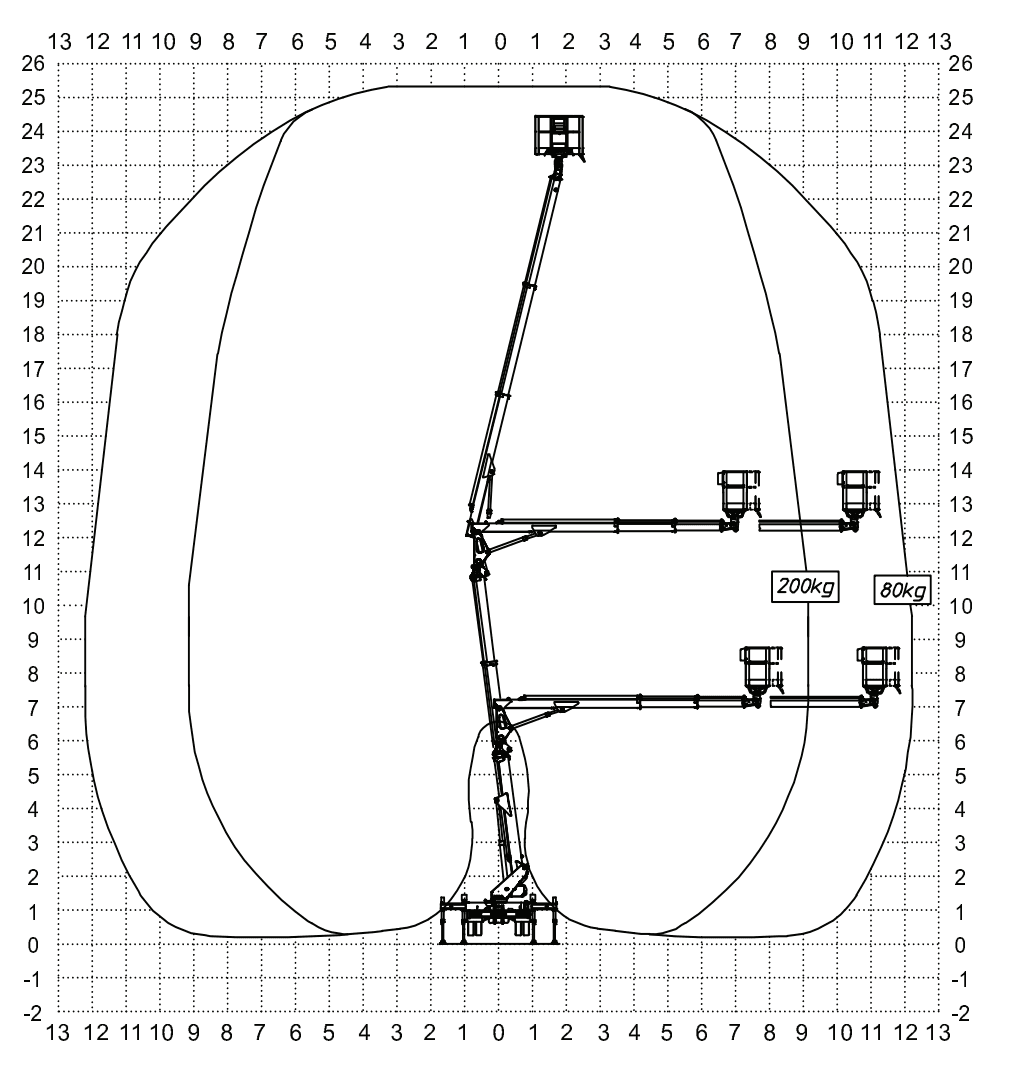

Load diagram
Reach and load by position
Next step
Need a quote for this platform?
Send us the location, type of work and approximate working height. If you already know you need the MX250.
MX250↕ 25.3 m↔ 12.2 m
