Universal

MX270

Ideal for billboard installations, power line work, tree trimming and other higher-reach jobs.

Working height
27.3 m
Side reach
13.3 m
Basket capacity
225 kg
Vehicle weight
7,3 t
Platform MX270

Best used for

Typical jobs for this platform

  • installation work farther from the object
  • tree trimming and public space maintenance
  • operations on lines, poles and technical structures

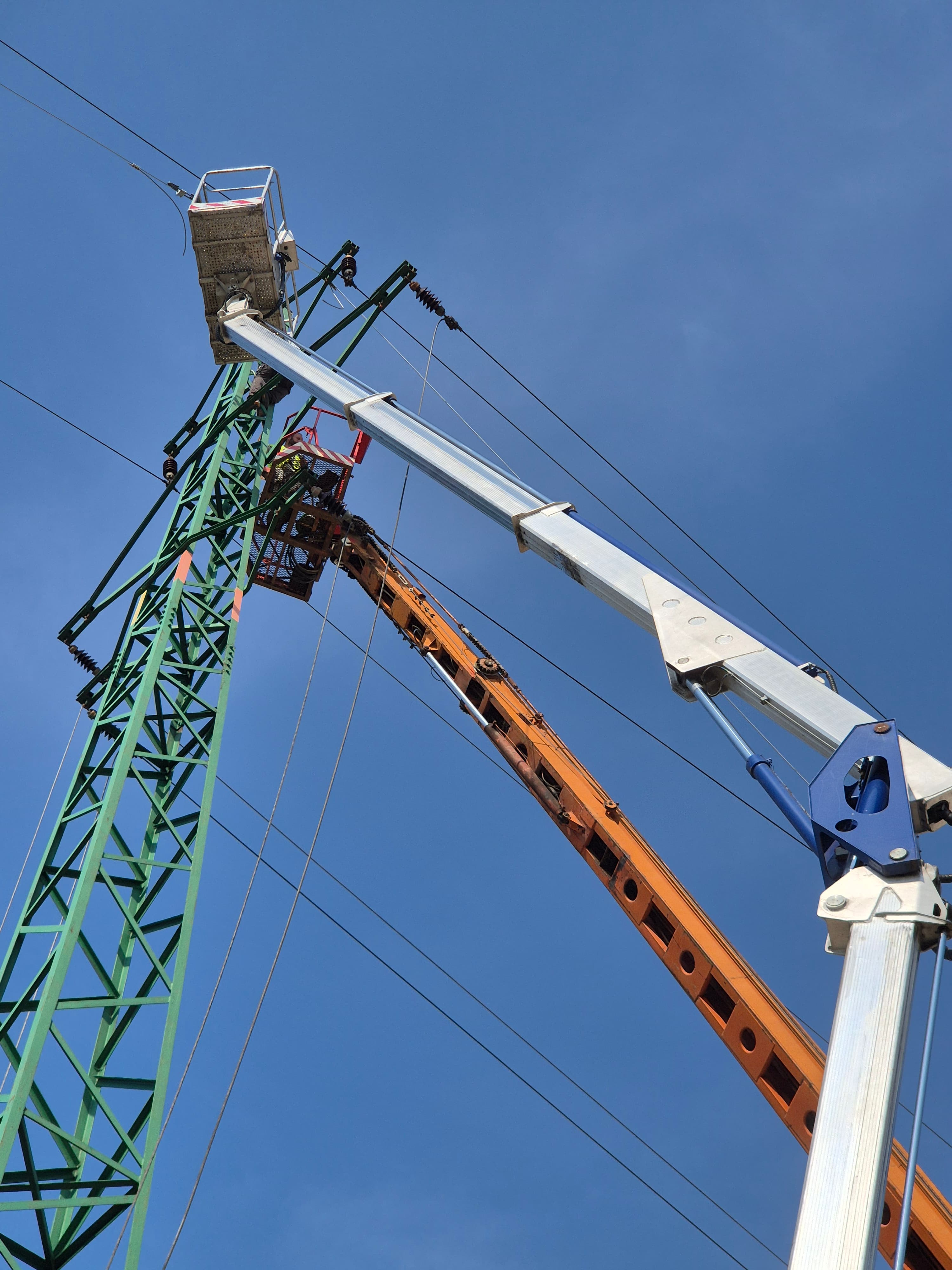

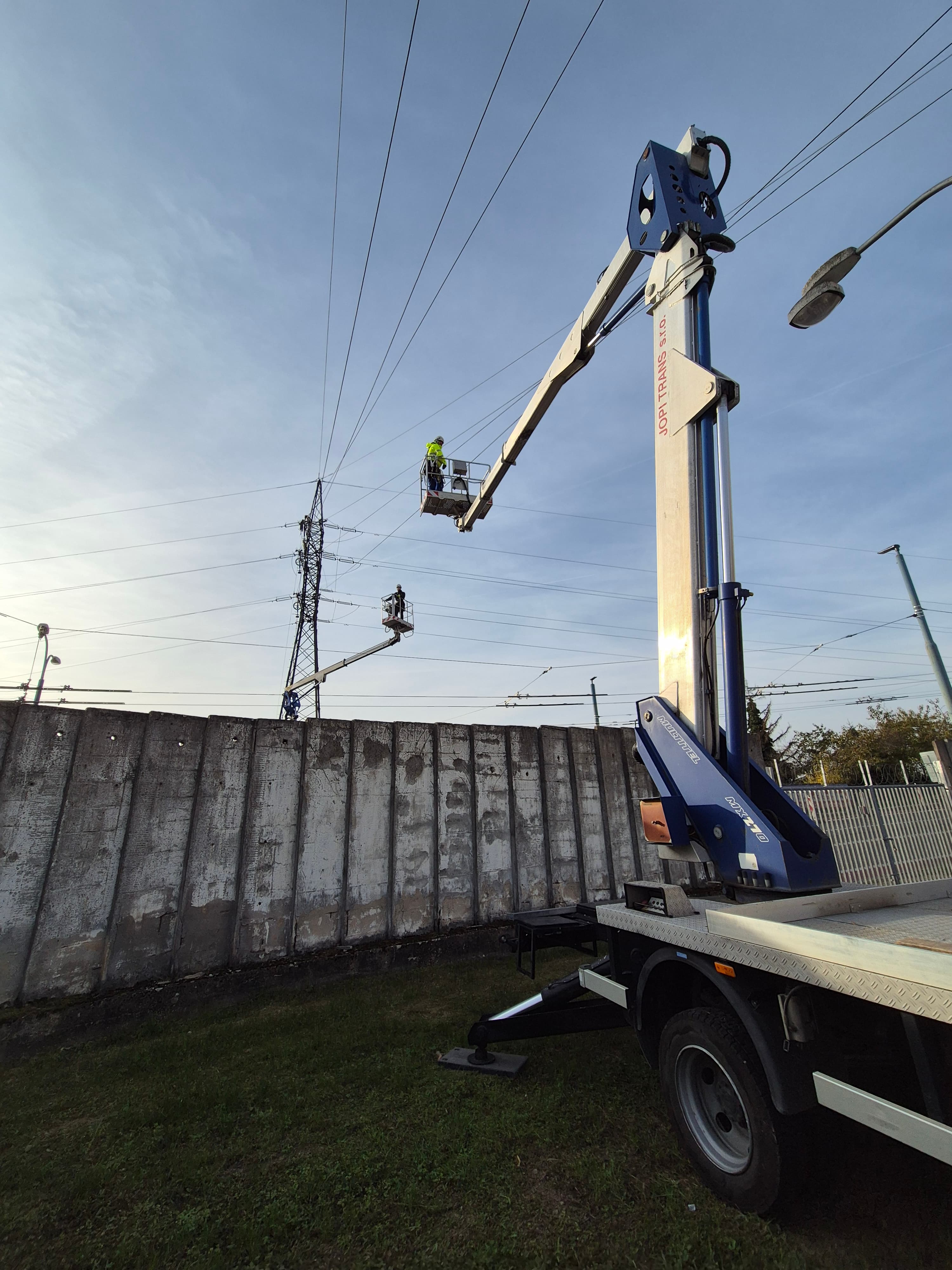

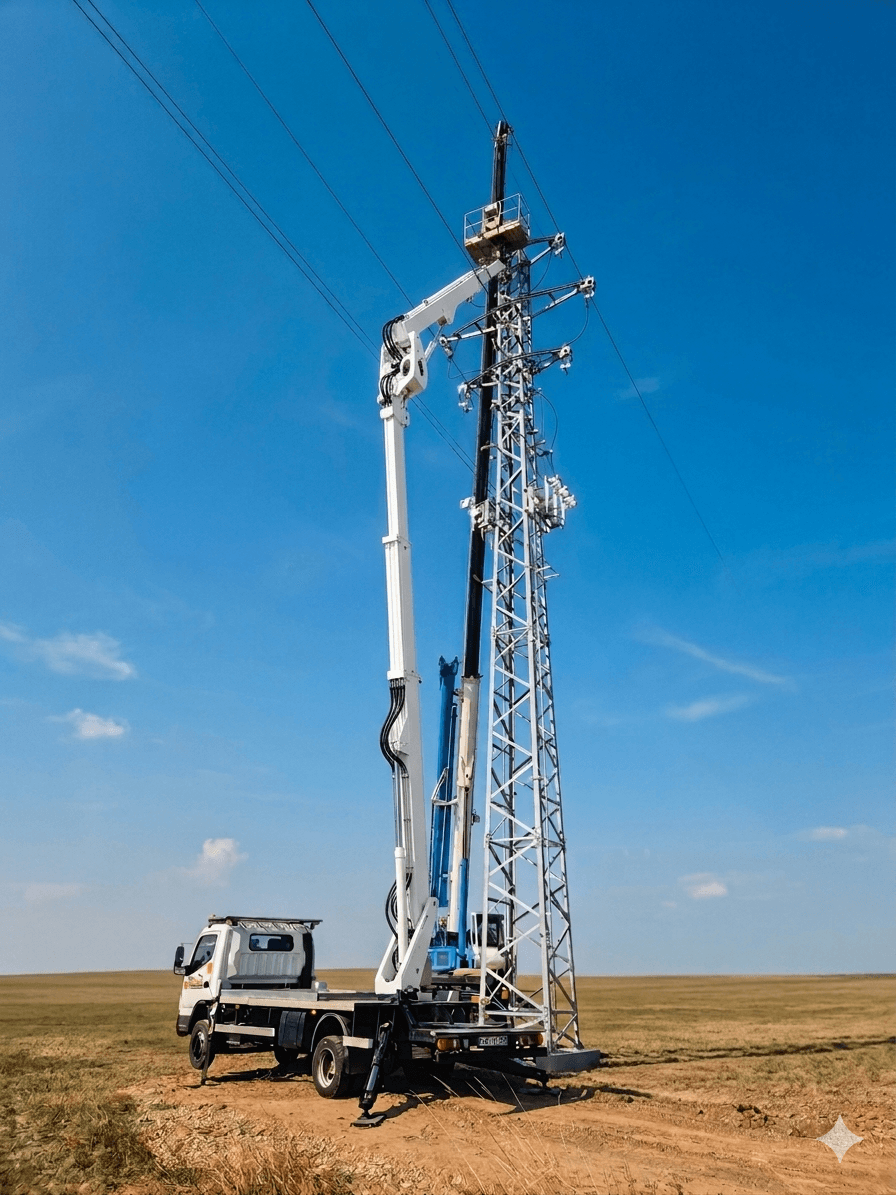

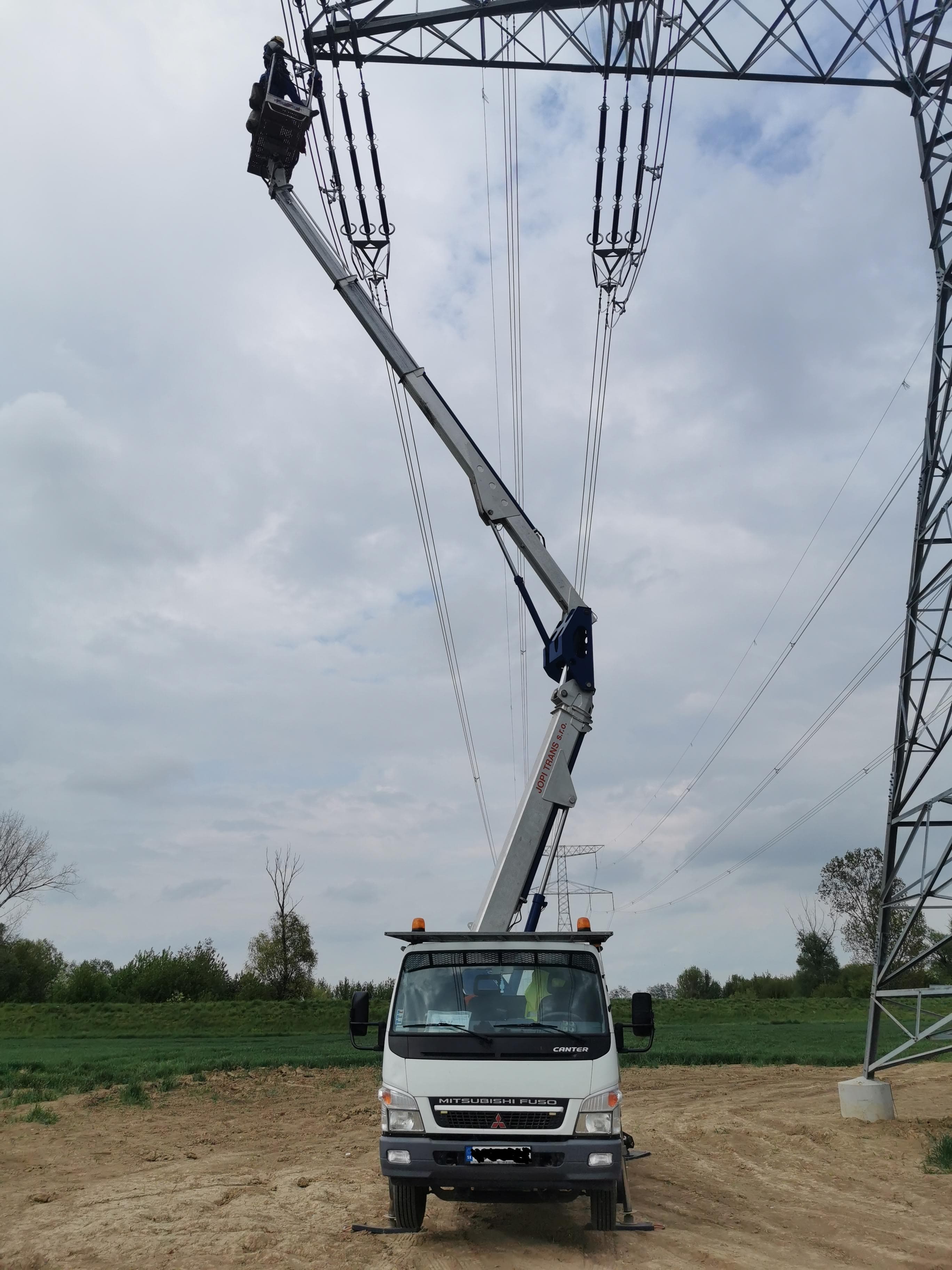

Gallery

Platform gallery

Click on a photo to open a larger view.

Technical parameters

Complete vehicle data

Chassis
Mitsubishi Fuso Multitel MX270
Drive
nafta, 4x2
Max. basket floor height
25,3 m
Machine height
3 m
Machine width
2,3 m
Machine length
8 m
Max. working height
27,3 m
Max. horizontal reach
13,3 m
Column rotation
360°
Basket dimensions
1,7 x 0,8 x 1,1 m
Basket rotation
90° vpravo + 90° vľavo
Basket capacity
225 kg
Total vehicle weight
7,3 t

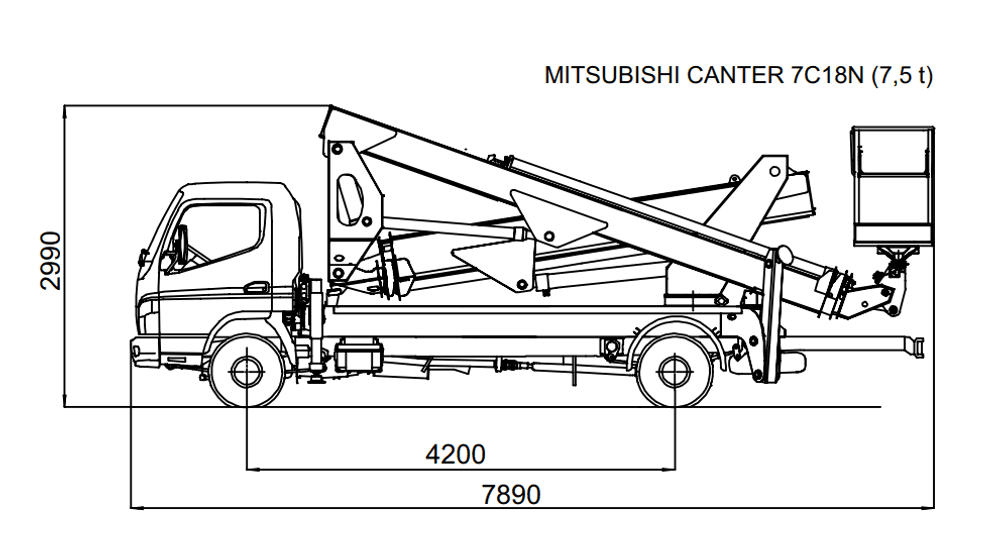

Vehicle dimensions

Platform dimensions MX270

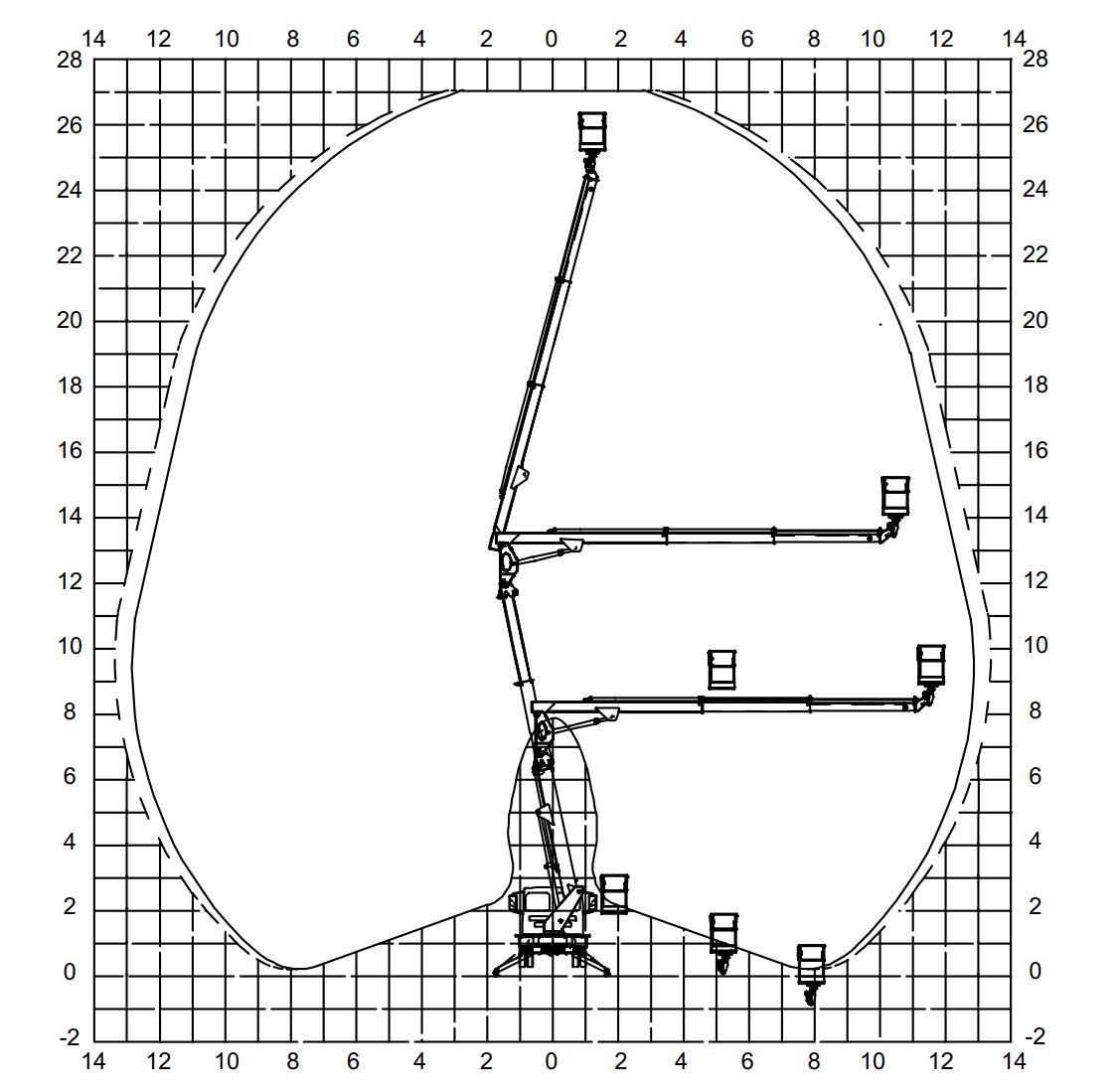

Load diagram

Reach and load by position

Load diagram of platform MX270

Next step

Need a quote for this platform?

Send us the location, type of work and approximate working height. If you already know you need the MX270.

MX27027.3 m13.3 m
