Best used for
Typical jobs for this platform
- energy and industrial operations
- demanding interventions at great height
- large-scale installation and service on technical facilities
Maximum reach
TJ330
Designed for industry, energy projects and more demanding high-elevation work.
- Working height
- 33 m
- Side reach
- 21 m
- Basket capacity
- 280 kg
- Vehicle weight
- 17,6 t

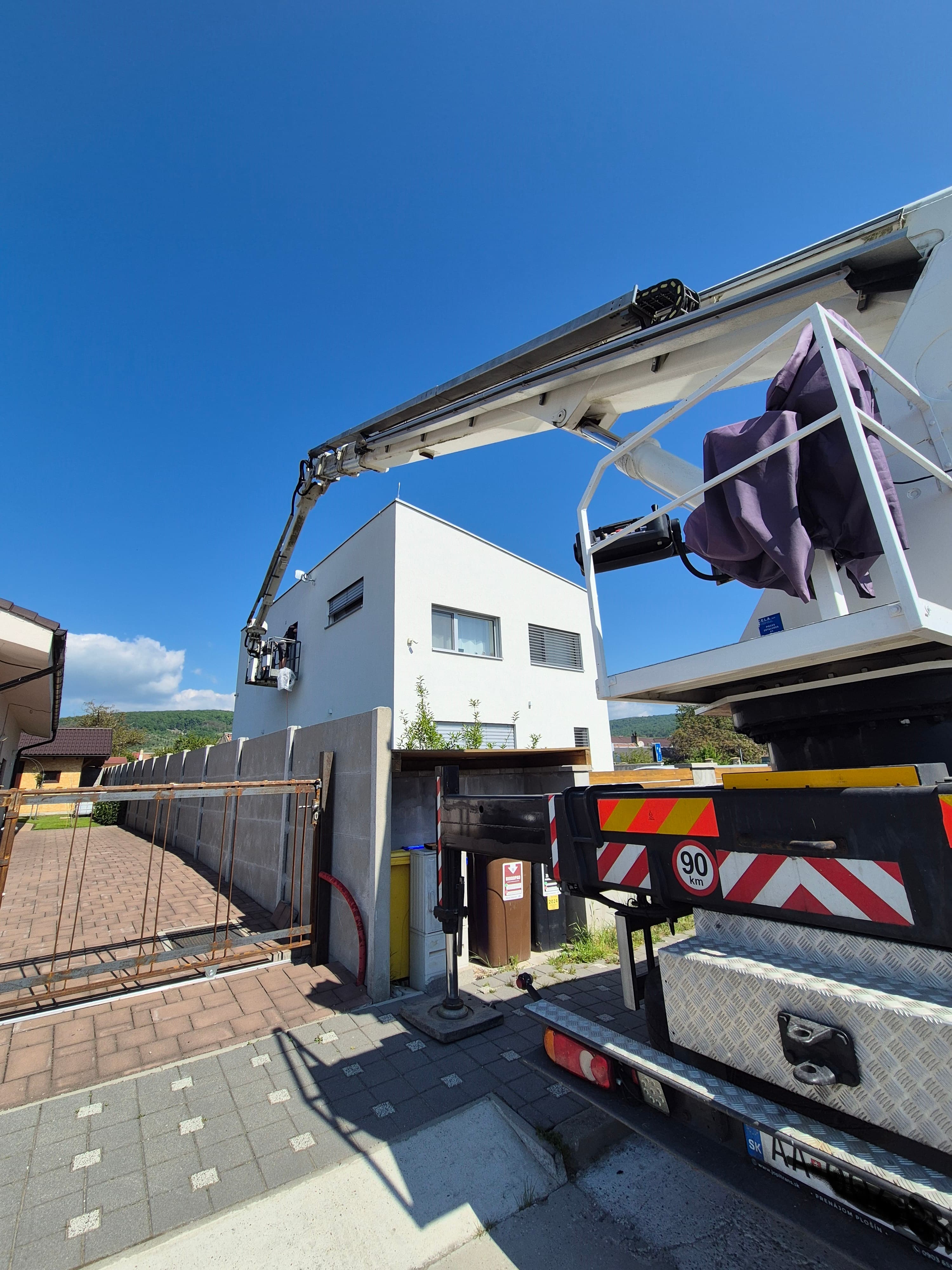

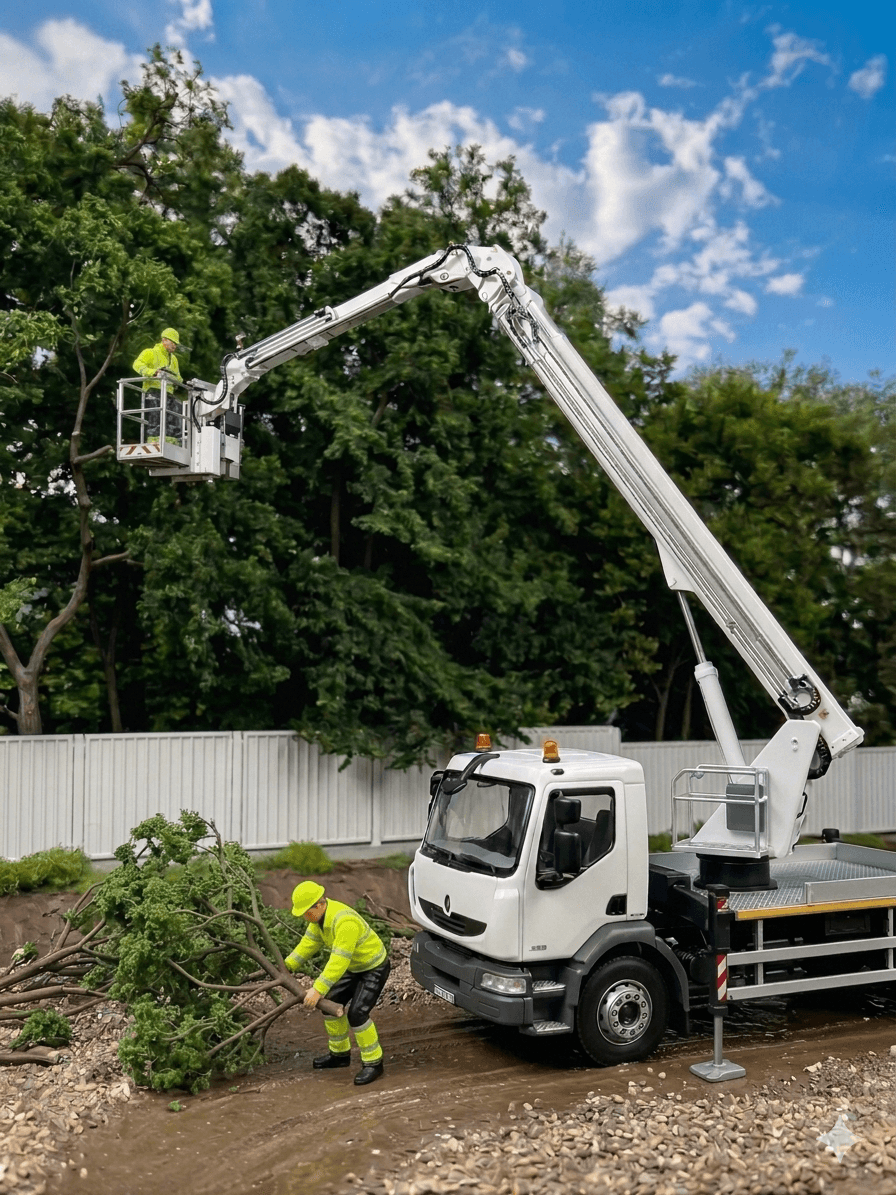

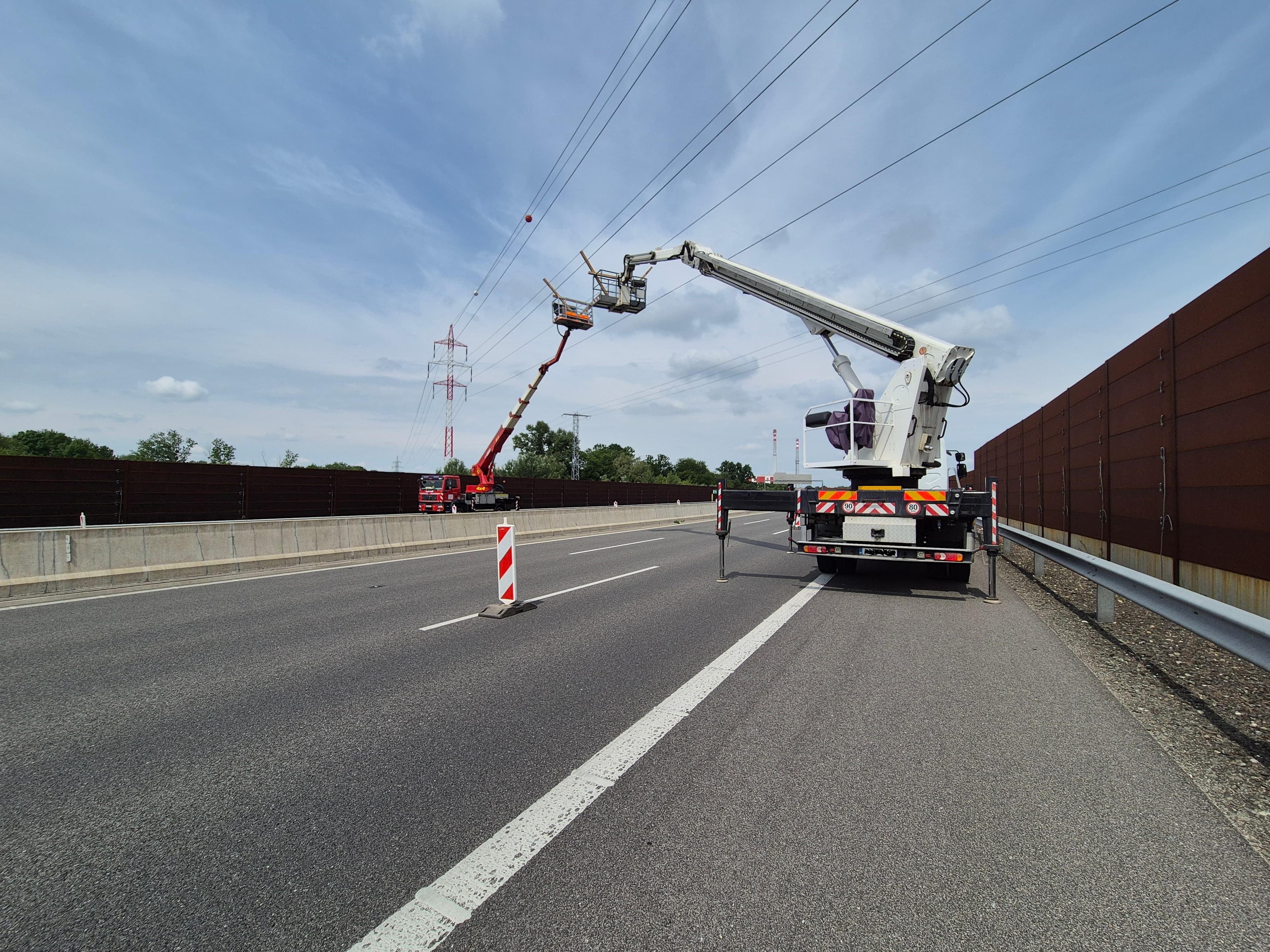

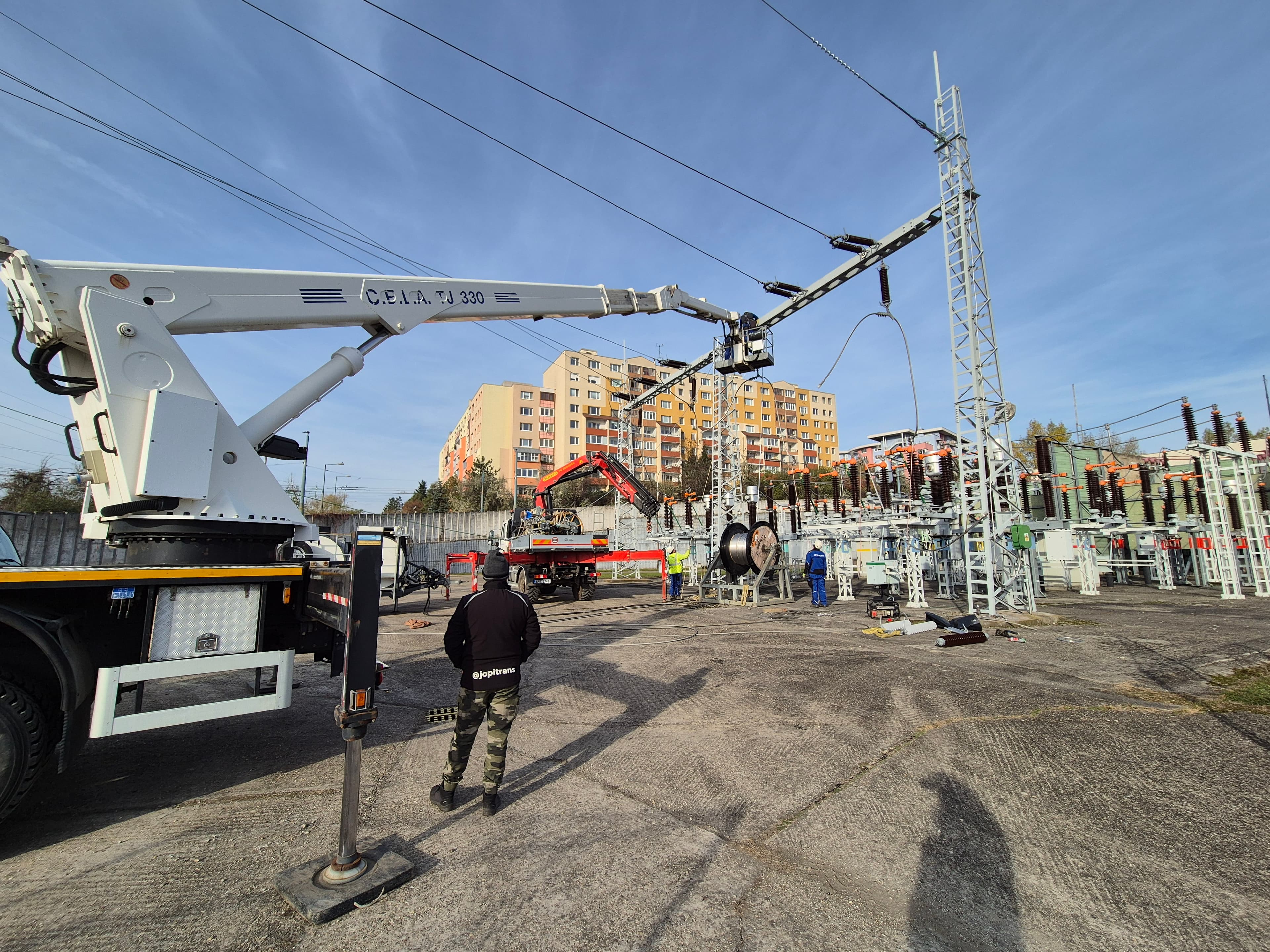

Gallery
Platform gallery
Click on a photo to open a larger view.
Technical parameters
Complete vehicle data
- Chassis
- Renault Midlum Cela TJ330
- Drive
- nafta, 4x2
- Max. basket floor height
- 31,1 m
- Machine height
- 3,9 m
- Machine width
- 2,5 m
- Machine length
- 9 m
- Max. working height
- 33 m
- Max. horizontal reach
- 21 m
- Column rotation
- 360°
- Basket dimensions
- 2,1 x 0,8 x 1,1 m
- Basket rotation
- 90° vpravo + 90° vľavo
- Basket capacity
- 280 kg
- Total vehicle weight
- 17,6 t

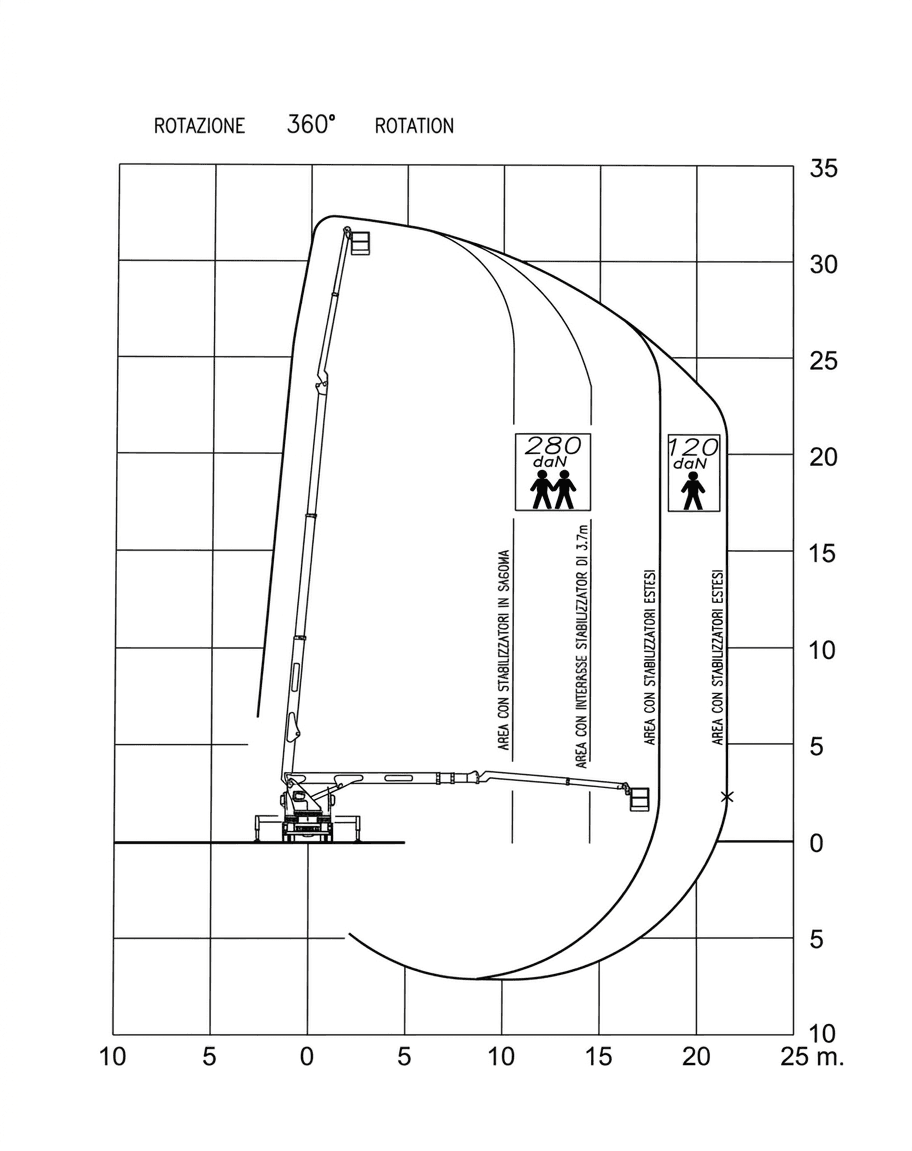

Load diagram
Reach and load by position
Next step
Need a quote for this platform?
Send us the location, type of work and approximate working height. If you already know you need the TJ330.
TJ330↕ 33 m↔ 21 m
